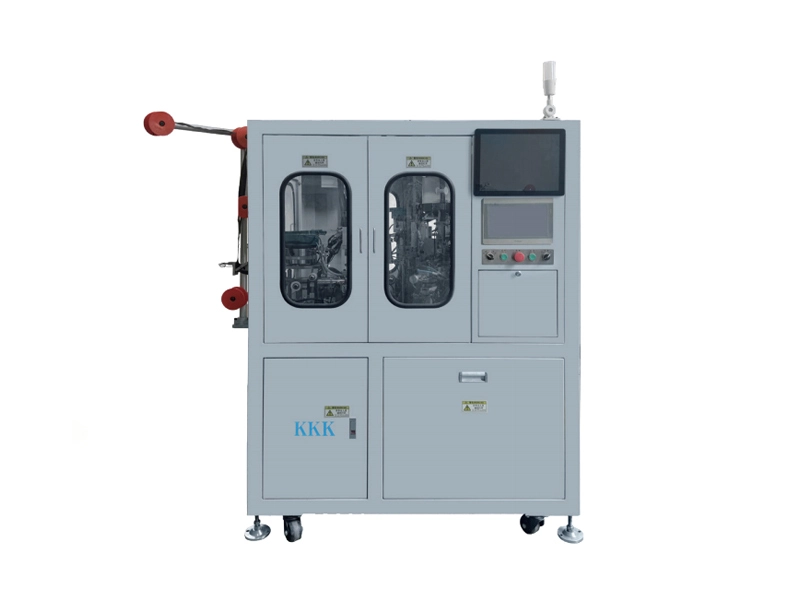

Fully Automatic Metal Zipper YG Slider Machine with Al Quality Inspection System: Close End H Stop Cutting Slider Mounting U Stop Inspection Platform 5-in-1
The Fully Automatic Metal Zipper YG Slider Machine streamlines the production process by integrating slider mounting, cutting, and quality inspection into a single platform, enhancing operational efficiency. Its advanced Al Quality Inspection System ensures precision and reliability, minimizing waste and reducing rework while maintaining consistent product standards.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Products Advantages
● This machine is used for 5 proesses of nvlon zipper, such as gapping, welding teeth, film sealing, punching, and pin box etc. It integrates 5 proceses into one, occupies less floor space, and can be operated by many sets of machines per person, with high efficiency per person.
● This machine is used for metal zipper close end H bottom stop, cutting, slider mouting, U particle top stop particles of the four processes. Four processes a machine to complete, covers an area of less, per capita can operate multiple sets of machines, per capita efficiency is high.
● The slider mounting part adopts the first cutting and then mechanical fixture to simulate the human hand before slider mounting to solve the pull slider mounting of the transparent film white and deformation of the problem, as well as with the cord thickening of the problem of hard to mount the slider. Gapping size 3cm can work.
● Adopting DD motor rotary platform, multiple stations work in parallel at the same time, high machine efficiency.The operation is simple, the machine is stable, and the defective rate of the products is low.
Reasonable Prices
● This machine through a number of groups of robotic imitation of manual H bottom stop, ultrasonic cutting, slider mounting, installation of U particles top stop.
● The top stop part adopts pneumatic pressurised fixture, the fixed position of the top stop particles is stable and the defective rate is low.
QC Team
● Al visual inspection quality system can be added, which can identify the logo of the puller and the defect of the top stop, and separate the defective products and good products for discharge.
High-End Look
● The H bottom stop part of the pneumatic pressure, energy-saving and quiet.
Product Specifications
| Model | KKK-4M-1 |
| Power | 5.5KW |
| Volt | 220V |
| Frequency | 50/60HZ |
| Net weight | 710KG |
| Gross weight | 880KG |
| Average output | 2100PCS/H |
| Machinesize(L*W*H) | 145*135*175 |
| Dimension(L*W*H) | 165*160*200cm |
Detailed Showcase
NEW LINE METAL CLOSE-END ZIPPER PRODUCING FLOW
TRADITIONAL LINE METAL CLOSE-END ZIPPER PRODUCING FLOW
