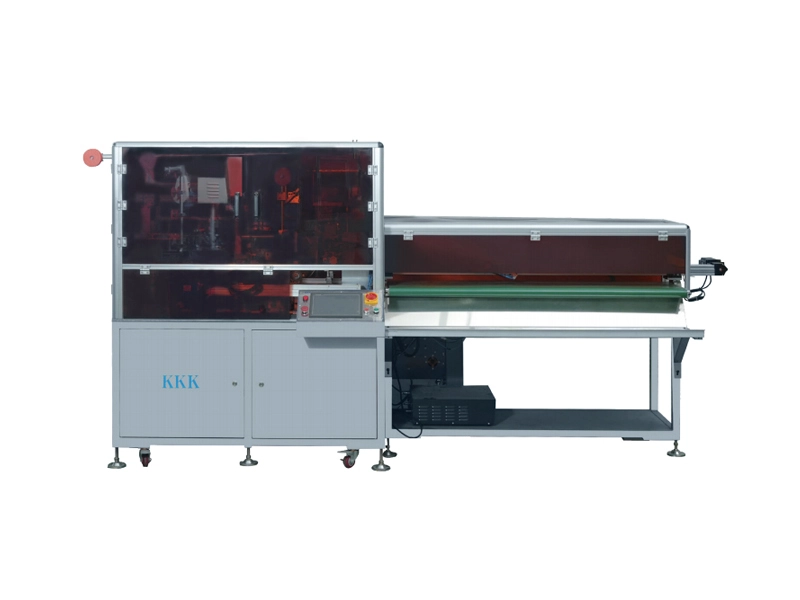

Full Auto Intelligent Metal Zipper Machine 2-Way Cut Double Slider U-Stop 4in1 AI Inspection
The Full Auto Intelligent Metal Zipper features a 2-way cut with a double slider design that enables seamless operations and enhanced functionality. This product incorporates AI inspection technology to ensure precise quality control, making it an ideal solution for industries requiring reliable zipper performance.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Products Advantages
● This machine is used for 5 proesses of nvlon zipper, such as gapping, welding teeth, film sealing, punching, and pin box etc. It integrates 5 proceses into one, occupies less floor space, and can be operated by many sets of machines per person, with high efficiency per person.
● This machine is used for metal zipper two way cutting, mounting top and bottom slider, U particle top stop particles of the four processes. Four processes a machine to complete, covers an area of less, per capita can operate multiple sets of machines, per capita efficiency is high.
Reasonable Prices
● This machine through a number of groups of robotic imitation of manual ultrasonic cutting, mounting two sliders, installation of U particles top stop, the use of servo motors module, easy to operate, machine stability, product defective rate is low.
High-End Look
● The slider mounting part of the first cut off after the robot simulation of human hand and then slider mounting to solve the pull slider mouning of the transparent film white and deformation of the problem, as well as with the cord thickening of the problem of hard to mount the slider. Gapping size 3cm can work.
QC Team
● Al visual inspection qualty system can be added, which can identify the logo of the puller and the defect of the top stop, and separate the defective products and good products for discharge.
● The top stop part adopts rotating head pushing and clamping structure, the top stop particle fixed position is stable, low defective rate. The display can be set whether the top stop position is a flat top stop or a high and low top stop.
● Cut off the part of the ultrasonic cutting, washing performance is good, cut off the surface is not crooked, not white, not hairy.
● The double slider mounting part adopts side push zipper structure, and the fancy puller is universal.
Product Specifications
| Model | KKK-4M |
| Power | 220V |
| Volt | 5.5KW |
| Frequency | 50/60HZ |
| Net weight | 710KG |
| Gross weight | 880KG |
| Average output | 600PCS/H |
| Machinesize(L*W*H) | 340X196X90 |
| Dimension(L*W*H) | 355X205X90cm |
Detailed Showcase
NEW LINE METAL OPEN-END ZIPPER PRODUCING FLOW
TRADITIONAL LINE METAL OPEN-END ZIPPER PRODUCING FLOW
